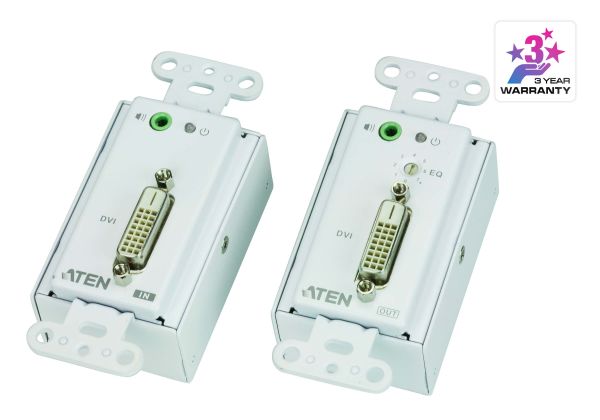

Aten DVI/Audio Cat 5 Extender Wall Plate (1920 x 1200@40m) | VE606-AT-E

The VE606 DVI Over Cat 5 Extender Wall Plate extends DVI and audio signals up to 60m using Cat 5e cable. It supports popular wide screen formats and ensures excellent video quality over long distance transmissions. The VE606 combination can further extend the distance or multiply sources/displays.

The VE606 can be powered at either the Transmitter or Receiver side, and uses a second Cat 5e cable to transmit the power signal. The VE606’s compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is an ideal solution for function rooms, museums and any environment that requires equipment or cabling to be kept hidden from public view.

Package Contents
1x VE606T DVI Over Cat 5 Extender Wall Plate
1x VE606R DVI Over Cat 5 Extender Wall Plate
1x Terminal Block Connector
1x Power Adapter
1x User Instructions

Features
Uses two Cat 5e cables to connect the local and remote units – one to transmit video and audio; and another for power*
Remotely powered from either the Transmitter or Receiver side**
Extends the distance between DVI source and DVI display
Superior video quality – up to 1920 x 1200@40m; 1280 x 1024@60m
8 segment equalization adjustment switch optimizes display quality
Supports wide screen formats
Supports hot-plugging
Decora type design is easily configurable to fit various wall plates
LED indication of power sources / connection status
Supports stereo audio
Built-in 8KV/15KV ESD protection
Easy installation
Wall mountable type for a neat and cleaner installation
Plug-and-play – no software installation required

Note:
* The second Cat 5e cable connection is required to remotely power on either the Transmitter or Receiver.
** A power adapter is provided with this package, and can be used at either the Transmitter or Receiver side, which in turn remotely powers the other unit.
