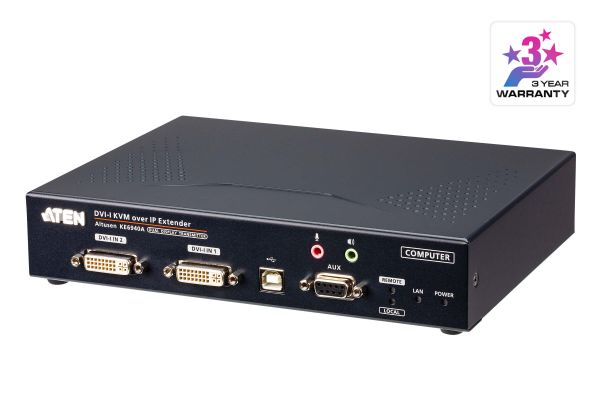

Aten DVI-I Dual Display KVM over IP Transmitter | KE6940AT-AX-E

The KE6940A extender is consisted of a high performance IP-based transmitter (KE6940AT) that connects to the computer and a receiver (KE6940AR) that provides console access from a separate location. The KE6940A allows extended access of computer systems remotely via USB consoles (USB keyboard, USB mouse, DVI monitor) over intranet, enabling users to place the computer system in secure and temperature controlled environments, which maybe isolated from users’ workstation.

The KE6940A DVI-I Dual Display KVM over IP Extender supports two DVI displays at each end and provides lossless and low latency video transmissions up to 1920 x 1200 @ 60Hz.

The KE6940A support connections via an RJ-45 port or a SFP slot. The transmitter and receiver can be connected either directly to each other, or via a high-speed network over a copper-based or fiber-based LAN. Connecting via the SFP slot with 1Gbps SFP fiber module expansions on fiber optic network, you can extend transmission distances up to 10km. The KE6940A also features dual power supplies for redundancy to ensure dependable services.

As an IP-based matrix extender, the KE6940A can be used as a point-to-point / point-to-multipoint / multipoint-to-point extender, or integrated into a KVM over IP Matrix System (multipoint-to-multipoint) when combined with the KVM over IP Matrix Manager (CCKM), providing more flexible applications in different working environments.

Implementing the CCKM with KE6940A, IT administrators can benefit from advanced features such as auto detection of all KE6940A devices on the same subnet for the sake of fast installation or configuration, username/password authentication and authorization, and the ability to define different types of connections that can be switched and shared. Security features also provide extra protection, supporting AES-128bits encryption for secured data transmissions, while RADIUS, LDAP, AD or remote user authentication provides an added layer of connection security. Moreover, with an OSD, RS-232 support, and Auto MDIX, the KE6940A is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.

Package Contents
1x KE6940AT DVI-I Dual Display KVM over IP Transmitter
1x Power Adapter & Power Cord
1x KVM Cable (DVI-D, USB, Audio; 1.8m/6ft)
1x DVI-D Cable 1.8 m
1x Foot Pad Set (4 pcs.)
1x Mounting Kit
1x User Instructions

Advanced Features
ATEN Matrix Link – allow users instant link transmitters and receivers, and perform real-time port and profile switching on an iPad
Boundless Switching – simply moves the mouse cursor across screen boundaries to switch between different receivers (Rx)
Fast Switching – switches between different remote video resolutions on a local display within 0.3 seconds
“Push” and “Pull” – shares content instantly to / from a single Rx or video wall by just one click
Video walls – creates multiple video walls with up to 12 x 12 (144 displays max.) in each layout
Flexible connections – allows multiple extender and matrix connections for multi-display installations and video wall applications
On-screen Preview (Panel Array™ Mode) – allow users to view the video of up to 36 displays on one screen
Advanced scheduling – improves efficiency and saves costs by allowing connections to be set based on time and date
Channel connections allow RX devices to connect to multiple TX devices – to stream video, audio, USB and serial sources independently
Virtual transmitter – independently streams video, audio, USB, and serial sources from different Tx
Internal and external authentication support – supports LDAP, Active Directory, RADIUS and TACACS+ external authentications
Advanced user authorization settings – administrators can set four access modes of permissions on TX devices for collaboration or to avoid interference among users
Video grouping of up to 4 sets of KE series devices to support Multi-Display applications
Configurable user and group permissions for access and control of KVM over IP extenders
Rx access control – users at the Tx local console can enable / disable Rx access by simply pressing a control button2

Note :
1. These advanced functions are supported when the KE transmitters are paired with KE receivers and managed by CCKM.
2. The KVM over IP Access Control Box (2XRT-0015G) is sold separately. Contact your ATEN dealer for product information.

Hardware
Supports power/network failover – dual DC jacks for power redundancy and 1 RJ45 & 1 SFP fiber ports for network failover to ensure constant availability for mission-critical applications
Supports 1Gbps SFP fiber module expansions up to 10 km1
Advance processor provides lossless and low latency video transmissions up to 1920 x 1200 @ 60Hz
Supports digital (DVI) or analog (VGA) video output2
Audio Enabled – supports stereo speakers and microphone
High speed USB Storage Transmission support
Auto-MDIX – automatically detects cable type
Built-in 8KV/15KV ESD protection and 2KV surge protection
Fanless design for silent operations that are energy efficient
Mounting options:
• 2X-021G Dual Rack Mount Kit
• 2X-031G Single Rack Mount Kit
Includes an industrial-grade power adapter – supports operating temperature of 0°C- 50°C to ensure durability and adaptability under harsh environmental conditions

Note:
1. The SFP module (2A-136G / 2A-137G) is sold separately. Contact your ATEN dealer for product information.
2. To convert a DVI to VGA signal, a DVI-I to VGA converter is required.

Management
Centralized management software – KVM over IP Matrix Manager (CCKM) allows users to easily administrator all KE devices with an intuitive web-based GUI
Dual console operation – controls the user's system from both the transmitter’s and receiver’s keyboard, monitor, and mouse consoles
OSD (On Screen Display) on the Receiver configures both units
EDID Expert™ – selects optimum EDID settings for smooth power-up and highest quality display
Four selectable access modes for multiple simultaneous access(Exclusive/Occupy/Share/ View only mode) – administrators can select access modes of permissions on Tx devices to boost collaboration or to avoid interference among users
Command line interface – administrators can control all KVM over IP extenders via RS-232 or TCP/IP using a CLI or 3rd party application
RS-232 serial ports – allow users to connect to a serial terminal for TextMenu, CLI, or serial devices such as touch screens and barcode scanners
Supports Hotkey Commands
Flashing LED and beeping features help locate and identify devices
Video Compression Level – allow users to increase/decrease the video quality to adjust for appropriate network bandwidth
Compatible with all KE devices

Security
Dedicated LAN port for KE direct connections – can be isolated from the corporate network
Secure data transmission – AES 128-bit encryption to secure all data before transmitted over a network and decrypts the data on the receiver
Supports industry standard Transport Layer Security (TLS) protocol

Virtual Media
USB storage transmission mode enhances data transmission performance, ideally for file transfers, OS patching, software installations and diagnostic testing
Supports USB 2.0 DVD / CD drives, USB mass storage devices, PC hard drives and ISO images
Supports smart card / CAC reader
