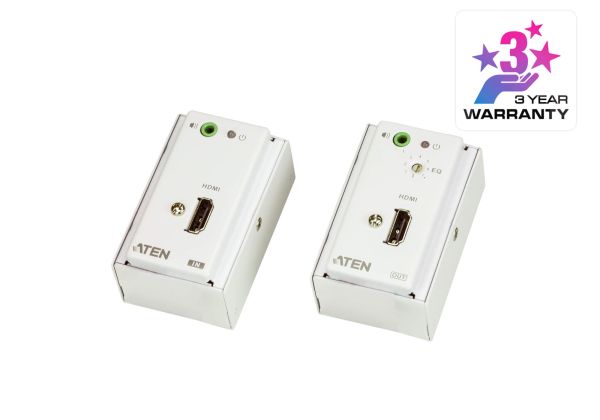

Aten HDMI/Audio Cat 5 Extender with MK Wall Plate (1080p @ 40m) | VE807-AT-E

The VE807 HDMI/Audio Cat 5 Extender with MK Wall Plate is designed to be conveniently mounted in a one- gang junction box for the UK, Singapore, Hong Kong and other markets that apply MK type junction boxes. It extends HDMI and audio signals up to 60 meters over a Cat 5e/6 cable and supports widescreen formats ensuring excellent video quality.

The VE807 can be either powered at Transmitter or Receiver side, and a second Cat 5e/6 cable is used for power signal transmission, real EDID bypass, and HDCP key authentication. The VE807’s compact wall plate design does away with bulky cables allowing a neat and convenient installation. Therefore, it is a perfect solution for function rooms, museums and any setting that requires equipment or cabling to be kept from the public’s view.

Package Contents
1x VE807 HDMI/Audio Cat 5 Transmitter with MK Wall Plate
1x VE807 HDMI/Audio Cat 5 Receiver with MK Wall Plate
1x Terminal Block Connector
1x Power Adapter
2x MK type Wall Plate Covers
8x Screw Covers
1x Screw kit
1x User Instructions

Features
Uses two Cat 5e/6 cables to connect the local and remote units - one to transmit video and audio signal, and the other one is used for power signal transmission, real EDID bypass, and HDCP key authentication*
Remotely powered from either the transmitter or receiver side**
Extends the distance between HDMI source and display
Supports superior video quality up to 1080p @ 60 Hz at a distance of 40 m; 1080i @ 60 Hz at a distance of 60 m
Designed to mount in one- gang junction box for UK, Singapore, Hong Kong and other markets that apply MK type junction boxes.
HDMI (3D, Deep Color); HDCP compatible
Supports 8 segment equalization adjustment via switch
Supports widescreen formats
Supports hot- plugging
Supports stereo audio
Built- in 8KV/ 15 KV ESD protection
Plug- and- play with no software installation required
LED indication of power sources / connection status
* A second Cat 5e/6 cable connection is required to remotely power on either the transmitter or receiver
**A power adapter is provided with this package and can be used at either the transmitter or receiver side, which in turn remotely powers the other unit
