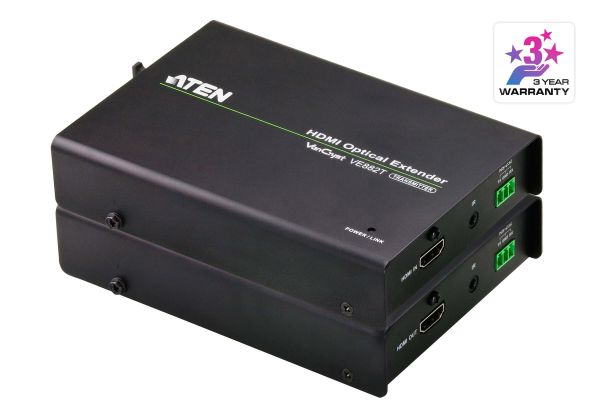

Aten HDMI Optical Extender (1080p@600m) | VE882-AT-E

The VE882 is an Optical HDMI Extender that overcomes the length restriction of standard HDMI cables by using optical fiber to send high definition audio and video signals over large distances.

The VE882 accepts an audio-video stream from a local source and serializes the data to pass it over a single 3.125 Gbps optical link (for resolutions up to 1080p@60Hz at 24-bits).

The VE882 can also extend the IR remote control and transfer RS-232 (up to 115kbps) in both directions, allows you to connect serial devices such as touch screens and barcode scanners.

Package Contents
1x VE882T
1x VE882R
1x IR Transmitter
1x IR Receiver
1x Mounting Kit
2x Power Adapters
1x User Instructions

Features
Extends the transmission range of HDMI, IR and RS-232 signals using one fiber optic cable
Very long distance transmission – up to 600m
HDMI (3D, Deep Color), HDCP compatible – signaling rates up to 3.125 Gbits
Superior video quality – up to 1080p@60Hz
Supports full frequency IR signal from 30KHz to 60KHz
(The IR receiver cable included with the package only supports 30 KHz to 56 KHz)
Uses one fiber optic cable to connect the local and remote units
Supports wide screen formats
Built-in 8KV/15KV ESD protection
Features RS-232 serial port for connecting peripherals such as touch screens, barcode scanners, etc.
Supports bi-directional IR signal transmission, one way at a time
Rack-mountable
Hot-pluggable
