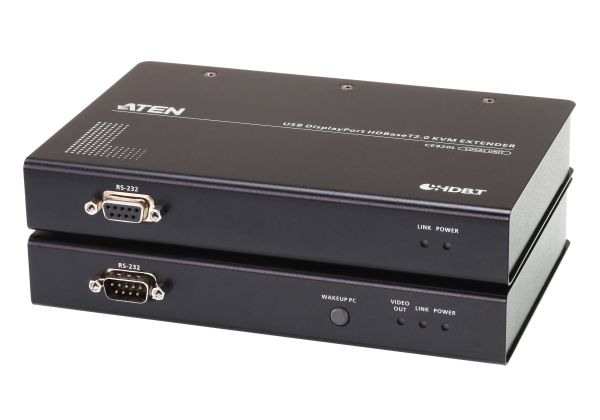

Aten USB DisplayPort HDBaseT™ 2.0 KVM Extender (4K@100 m) | CE920-AT-E

The ATEN CE920 USB DisplayPort HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using a single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE920 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.

Package Contents
1x CE920L USB DisplayPort HDBaseT 2.0 KVM Extender (Local Unit)
1x CE920R USB DisplayPort HDBaseT 2.0 KVM Extender (Remote Unit)
1x Microphone Cable
1x Speaker Cable
1x USB Type-A to Type-B Cable
1x DisplayPort Cable
2x Mounting Kits
2x Power Adapters
1x User Instructions

Supports HDBaseT™ 2.0 technology
- Extends video, audio, USB, RS-232, and Ethernet signals via a single Cat6 / 6a / 2L-2910 Cat 6 cable
- Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
- Status detection and LED indication for HDBaseT™ signal transmission on remote unit
EDID Buffer for smooth power-up and the highest quality display
Long distance with superior video quality
- HDBaseT™ Standard mode up to 4K @ 100m (Cat 6 / 6a / 2L-2910)
- HDBaseT™ Long-Reach mode up to 1080P @ 150m
Long Reach mode switch – switches between HDBaseT™ Standard and Long Reach modes in a snap
USB 2.0 full speed ports – ensures fast transmission speeds for peripherals
HDCP Compatible
Supports individual 2-channel stereo audio for high-quality audio applications
Supports PC wakeup function via single pushbutton through RS-232 channel*
Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
