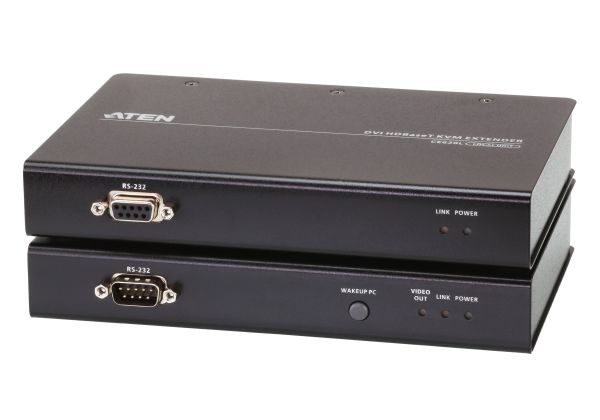

Aten USB DVI HDBaseT™ 2.0 KVM Extender (Long Reach mode up to 1920 x 1080@150 m) | CE620-AT-E

The ATEN CE620 USB DVI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to provide the most reliable transmission of video, audio, USB and RS-232 signals available on the market. Featured with a Long Reach mode, the CE620 delivers high-quality DVI video, PCM 2-channel digital audio, USB 2.0, and RS-232 signals up to 150 meters using a single Cat6/6a/ATEN 2L-2910 Cat 6 cable. With a simple cable installation supporting various signals, the CE620 is ideal for applications where convenient remote access is required – in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.

Package Contents
1x CE620L USB DVI HDBaseT 2.0 KVM Extender (Local Unit)
1x CE620R USB DVI HDBaseT 2.0 KVM Extender (Remote Unit)
1x Custom KVM Cable (DVI, USB; 1.8m/6ft)
2x Power Adapters
2x Mounting Kits
8x Foot Pads
1x User Instructions

HDBaseT™ 2.0 connectivity technology
• Extends video, audio, USB and RS-232 signals via a single Ethernet cable
• EDID Buffer for smooth power-up and the highest quality display
• Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
Long distance superior video quality
• HDBaseT™ Standard mode up to 1920 x 1200 @ 100 m
• HDBaseT™ Long Reach mode up to 1920 x 1080 @ 150 m
Long Reach mode switch — switches between HDBaseT™ Standard and Long Reach modes in a snap
3 USB 2.0 ports for keyboard/mouse and peripherals
Supports 2-channel PCM digital audio — ensuring highquality audio transmissions
Supports PC Wakeup function via pushbutton or hotkey
Built-in 8KV/15KV ESD pr otection (Contact voltage 8KV; Air voltage 15KV)
Note: The CE620 does not support HDCP.
