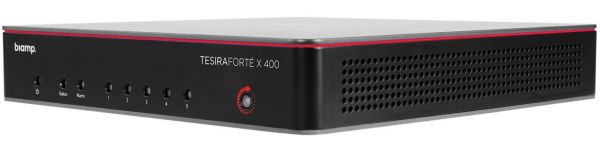

BIAMP TesiraFORTÉ X 400 Meeting Room DSP

TesiraFORTÉ™ X 400 is a meeting room DSP featuring multiple network and analog audio connection points, with 4 channels of Acoustic Echo Cancellation (AEC) assignable across any digital or analog input. Five 1-Gigabit Ethernet ports are provided, four of which are PoE+ powered, and all of which support media and control traffic of various types including AVB, Dante and VoIP.

A USB port also supports 1x1 mono or 2x2 stereo USB audio along with HID synchronization allowing the device to act as a conferencing audio peripheral to systems such as Biamp’s Modena family or Unified  Communications
platforms.

Biamp Launch technology provides the capability for device discovery and tuning to be undertaken without the need for custom programming, and additionally provides the user with a full performance report of the space upon completion.

TesiraFORTÉ X 400 provides extensive audio processing, including but not limited to: AEC technology, signal routing and mixing, equalization, filtering, dynamics, and delay, as well as control, monitoring, and  diagnostic tools. Forte X 400 is auto-configurable using Launch but also allows users the option to manually override and completely customize its programming using Tesira software.

FEATURES
 Up to 64x64 AVB Streams of digital audio networking with Biamp AVB devices
 Up to 128x128 channels of digital audio networking with Biamp AVB devices
 32x32 channels of digital audio networking via the Dante protocol
 AES67-enabled Dante endpoint
 2 mic/line level inputs, 2 mic/line level outputs
 Five 1 Gigabit Ethernet Ports
 Four ports support PoE+ power (IEEE 802.3.at Class 4, 30W)
 Up to 2x2 channels of configurable USB audio
 4 AEC channels assignable to any input
 4-pin GPIO
 Surface mountable with included bracket
 Supports port authentication via IEEE 802.1X
 SIP VoIP interface via Gigabit Ethernet connection
 CE marked, UL listed, and RoHS compliant
 Covered by Biamp Systems’ 5-year warranty
