| General | |
| TV Tuner Presence | No |
| HDMI Ports Qty | 3 ports |
| Weight | 41.9 kg |
| Power Consumption Operational | 231 Watt |
| Video Interface | HDMI |
| Dimensions | Without stand |
| Depth | 2.85 cm |
| Diagonal Class | 85" |
| Platform | Tizen OS |
| Commercial Use | Yes - digital signage |
| Height | 108.53 cm |
| Width | 190.43 cm |

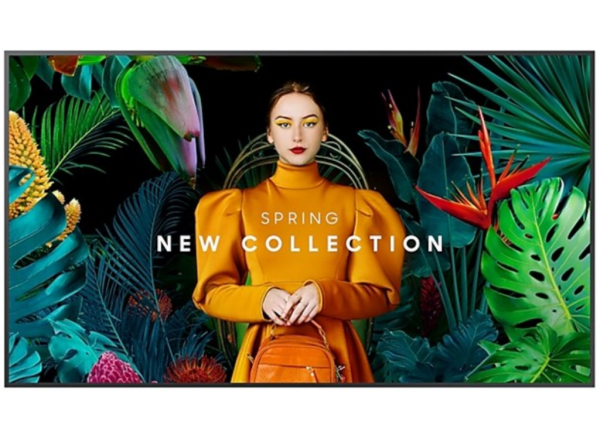

| Product Type | LED-backlit LCD flat panel display - Crystal UHD |
| Video Processor | Crystal 4K |
| Modes | Director Mode, DICOM Simulation Mode |
| Picture Enhancements | Mega Dynamic Contrast Ratio, Dynamic Crystal Color, Intelligent UHD upscaling, 72% Colour Gamut NTSC |
| Operating System | Tizen OS 7.0 |
| Series | QBC Series |
| Design | Even Bezel Design, Ultra Slim |
| Miscellaneous | |
| Compliant Standards | EMC Class A, HDCP 2.2, Safety 60950-1, Safety 62368-1 |
| Power | |
| Power Device | Power supply |
| Power Consumption Sleep | 0.5 Watt |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 80% (non-condensing) |
| Display | |
| Response Time | 10 ms |
| Image Aspect Ratio | 16:9 |
| Image Contrast Ratio | 4000:1 |
| Viewing Angle | 178 degrees |
| Viewing Angle (Vertical) | 178 degrees |
| Resolution | 3840 x 2160 |
| LCD Backlight Technology | LED backlight |
| LCD Display Technology | VA |
| Display Format | 4K UHD (2160p) |
| Brightness | 350 cd/m² |
| Operation Hours / Days | 16 / 7 |
| Coating | 2% haze |
| Pixel Pitch | 0.487 mm |
| Features | Smart Calibration |
| Commercial Features | SMART Signage Platform, Samsung VXT CMS, Home UI |
| Connections | |
| Connector Type | 3 x HDMI input, 2 x USB, RS-232 input, RS-232 output, Audio line-out, LAN input, Infrared input |
| Dimensions & Weight (Shipping) | |
| Depth (Shipping) | 21 cm |
| Height (Shipping) | 122.2 cm |
| Weight (Shipping) | 53.9 kg |
| Width (Shipping) | 207.7 cm |
| Network & Internet Multimedia | |
| LAN Protocol | Ethernet |
| Connectivity | LAN |
| Stands & Mounts | |
| Stand | Optional |
| VESA Compatibility | Yes |
| Flat Panel Mount Interface | 600 x 400 mm |
| Media Player | |
| USB Ports Qty | 2 |
| USB Port | Yes |
| Configuration | 8 GB |
| Sustainability Information | |
| ENERGY STAR Version | 8.0 |
| ENERGY STAR Certified | Yes |
| EPEAT Compliant | EPEAT Bronze |
